Multi-Layer Cordierite Ceramic Media Mlm-160 Mlm-180 Mlm-200 for Rto Device

Multi-Layer Cordierite Ceramic Media Mlm-160 Mlm-180 Mlm-200 for Rto Device Featured Image
  • Multi-Layer Cordierite Ceramic Media Mlm-160 Mlm-180 Mlm-200 for Rto Device
  • Multi-Layer Cordierite Ceramic Media Mlm-160 Mlm-180 Mlm-200 for Rto Device
  • Multi-Layer Cordierite Ceramic Media Mlm-160 Mlm-180 Mlm-200 for Rto Device

Multi-Layer Cordierite Ceramic Media Mlm-160 Mlm-180 Mlm-200 for Rto Device

Short Description:


  • Brand: Bestn
  • Origin: China
  • Size : 305*305*102mm 102*102*102mm
  • Type: 180,200
  • Bulk density: 2.25-2.35g/cm3
  • Water absorption: ≤1
  • MOQ: 1m3

    • Product Detail

    Product Tags

    Product description

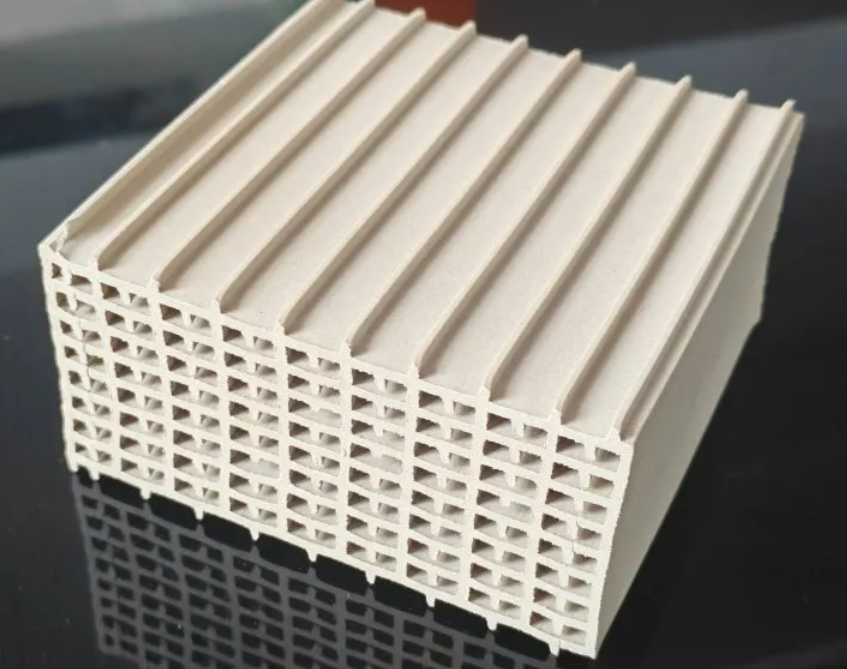

    Multi-layer ceramic media(MLM) is a type of structured packing which designed for VOC emission reduction equipment——Regenerative Thermal Oxidation (RTO). MLM is made of ceramic plate with prong. MLM obtained US patent for invention and Chinese patent for utility models because of its special structure design.
    The product has been exported to Europe, the United States, Southeast Asia,more than 30 countries and is the first choice of heat exchange media for RTO system which used for the VOCs emission of chemical, metallurgy, painting and so on.
    ScreenShot_2026-06-16_154505_150

    Specification

    Item
    Unit
    MLM-125
    MLM-160
    MLM-180
    MLM-200
    MLM-S Type
    Dimension
    mm
    305x305x102
    305x305x102
    305x305x102
    305x305x102
    305x305x102
    Surface area
    m2/m3-ft2/ft3
    410/125
    525/160
    590/180
    655/200
    722/220
    Density
    g/cm3
    2.25-2.35
    2.25-2.35
    2.25-2.35
    2.25-2.35
    2.25-2.35
    Weight
    Kg/m3
    703
    873
    981
    1096
    1052
    Acid Resistance
    %
    ≤4
    ≤4
    ≤4
    ≤4
    ≤4
    Water Absorption
    %
    <0.5
    <0.5
    <0.5
    <0.5
    <0.5
    Free Space
    %
    69
    61
    56
    51
    54
    Max Working Temperature
    ºC
    1180
    1180
    1180
    1180
    1180
    Heat Capacity
    (kJ/m2-°C)
    670
    810
    940
    1070
    1070
    Crushing Strength
    lb/ft2
    4210
    5380
    6120
    7340
    7340

    Advantage

    The unique advantages of plate-type honeycomb ceramics used in RTOs:

    1. Plate type honeycomb ceramics have strong anti-clogging properties.

    2. The special formula of the side wall cement of the plate-type honeycomb ceramic module can be opened by thermal shock and release the thermal stress. The single piece has strong thermal stress resistance, △T>400 ℃, and is not easy to be damaged.

    3. The air distribution is uniform and the turbulence is high, which improves the thermal efficiency and helps to improve the VOC removal efficiency.

    4. The porosity is large, the pressure of the air flow through the plate-type honeycomb ceramic is reduced, and the operating cost is reduced.

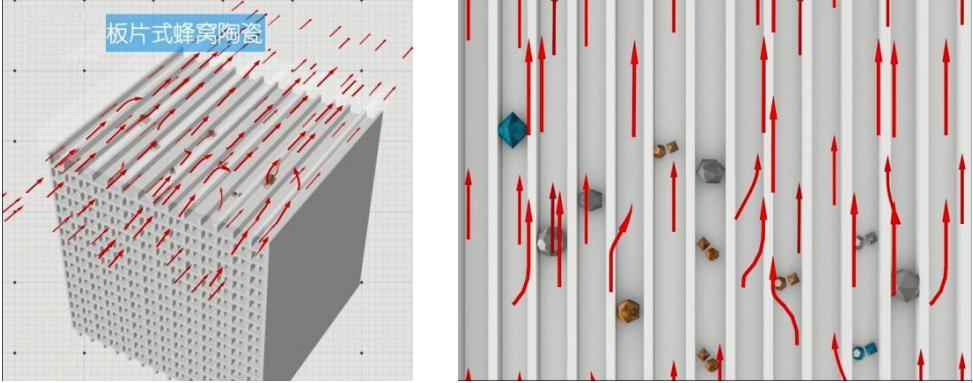

    5. The plate-type honeycomb ceramics are installed at a 90° angle between the upper and lower adjacent layers to change the direction of the airflow, increase the turbulence, and correct the small defects of uneven airflow distribution and improper installation.
    板式蜂窝陶瓷

    Application

    RTO equipment mainly deals with volatile organic compounds (VOCs), and typical organic waste gases include hydrocarbons, aromatic hydrocarbons, alcohols, ketones, aldehydes, ethers, phenols, esters, nitriles, etc. and their derivatives. Widely used in chemical industry, automotive paint, spray paint drying equipment, organic chemical industry, petrochemical industry, engraving printing, offset printing, food processing and other fields.
