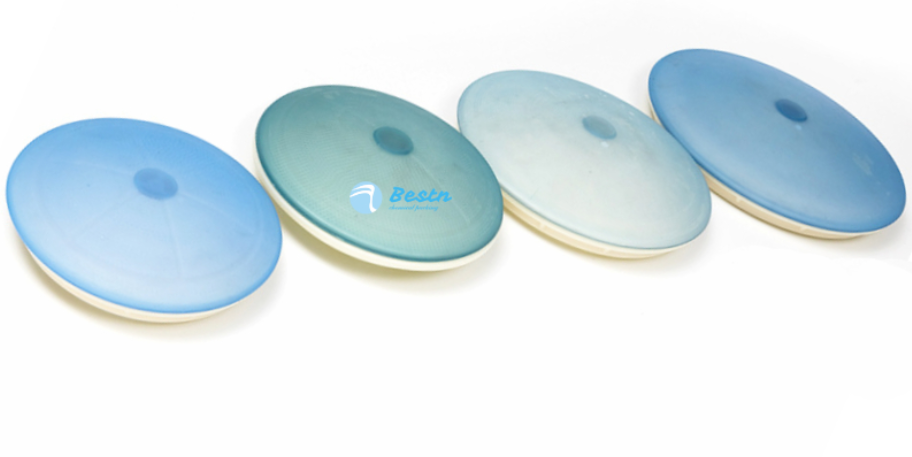

High Capacity Fine Bubble Diffuser Disks Aeration Diffuser with EPDM Slicone Membrane
High Capacity Fine Bubble Diffuser Disks Aeration Diffuser with EPDM Slicone Membrane
High Capacity Fine Bubble Diffuser Disks Aeration Diffuser With EPDM Slicone Membrane
|
EPDM fine bubble air diffuser model
|
Dia215mm
|
Dia260mm
|
Dia300mm
|
|
Working air flow(m3/h)
|
1.5-3
|
2-5
|
2-8
|
|
Designed air flow(m3/h)
|
2
|
3
|
4
|
|
Service area(M2/pc)
|
0.25-0.45
|
0.35-0.65
|
0.45-0.75
|
|
Oxygen utilization ratio(%)
|
>30%
|
>30%
|
>30%
|
|
Oxygen capability(kgO2/h)
|
0.13-0.35
|
0.18-0.45
|
0.25-0.5
|
|
Water submerged depth(m)
|
4-8
|
4-8
|
4-8
|
|
Theoretic dynamic effciency(kgO2/kw.h)
|
6.5
|
6.5
|
6.5
|
|
Drag loss(pa)
|
<3000
|
<3000
|
<3000
|
|
Holes quantity
|
>6300pcs holes
|
>9000pcs holes
|
>10000pcs holes
|
|
Bubble size
|
1-2mm
|
1-2mm
|
1-2mm
|
|
Perforation size
|
1mm
|
1mm
|
1mm
|
|
Membrane thickness
|
2±0.1mm
|
2±0.1mm
|
2±0.1mm
|
|
Material
|
EPDM/Silicon Membrane
ABS support plate |
EPDM/Silicon Membrane
ABS support plate |
EPDM/Silicon Membrane
ABS support plate |
|
Connection
|
3/4" NPT male thread
|
3/4" NPT male thread
|
3/4" NPT male thread
|
Different material for your reference
1.EPDM
Epdm can resist heat, light,oxygen, EPDM essentially non-polarity, polarity solution and chemical resistant, bibulous rate is low, it has good insulating properties.
2.Silicon
Insoluble in water and any solvent, non-toxic and tasteless, chemical properties stable, except strong alkali, hydrofluoric acid not react with any material.
3. PTFE
1.High and low temperature resistant, working temperature can be 250°C, good mechanical toughness;even if temperature drops to -196 degree also can keep 5% elongation.
2.Corrosion - resistance to most chemicals and solvents, showing inertia, strong acid resistance, water and various organic solvents.
3.High lubrication -the lowest friction coefficient in solid materials.
4.Non-adhesion -is the smallest surface tension in a solid material and does not adhere to any substance.
Product features
*Low resistance loss
*Highly Tear Resistant
*Anti-clogging, anti-backflow
*Ageing-resistant, anti-corrosion
*High efficiency, energy-saving
*Long service life, low maintenance
*Compact structure ,strong support

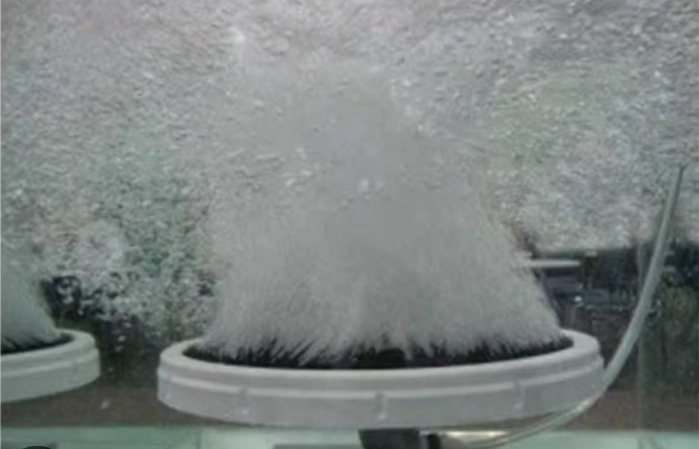

Product application
1.wastewater treatment of city planning,
2.textile printing ,
3.pharmacy,
4.petrochemical engineering ,
5.charking ,
6.process hides,
7.make mine and aquculture .
