Catalytic Substrate for Industrial VOCS

Short Description:

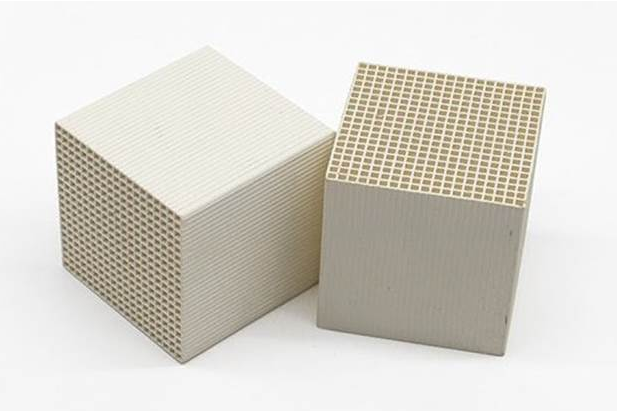

Ceramic honeycomb substrate is a new kind of catalyst monolith,which is widely used in automobile emissions purifying system and industrial exhaust gas treatment system.After coated with catalyst this products is applied in catalytic converter of diesel or gasoline vehicle to catalyze,convert and purify the exhaust,making vehicle exhaust reachig standards of Euro IV and Euro V

Send email to us

Product Detail

Product Tags

Catalyst for catalytic combustion uses cordierite honeycomb ceramic body as the first carrier，y-Al2O3。 as the second carrier, and noble metal Pd. PL. etc, as the main active component. which is prepared by the method of inefficient distribution of high dispersion rate, a new and fficient organic waste gas purification catalyst.

Specification

Shape	square honeycomb
Specitications	15015050.100* 10050. 5050*50 can be customized as required
Cell type	square
Cell density	32pcs/cm2
Carrier specific surface area	≥120m2/g
Wall thickness	0.2-5mm
Outer diameter	50-150
Height range	25-400
Tolerance range	1.0mm

Physicochmical properties

Category		Measurement	Parameter
Cordierite		%	≥95
Thermal expansion Coefficient (RT-800℃)		m/℃	≤1.3×10-6
Thermal shock resistance(RT-550℃)		Cycle times	≥3
Softening temperature		℃	≥1360
Compressive strength	Parallel direction	MPa	≥10
Compressive strength	Vertical direction	MPa	≥3
Mesh		Mesh	100-600
Water absorption rate		%	20-28
Wall thickness		mm	0.13-0.23
Tolerance range		mm	≤0.8
