95/187mm SF30 PP Bio PAC Trickling Filter Media

Short Description:

Brand: Bestn

Material: PP

MOQ: 1m3

Size: 95x35mm 187x50mm

Payment terms: TT,LC,Paypal

Delivery Method: EXW,FCA,FOB,CFR,CIF,DDP,DAP

Send email to us

Product Detail

Product Tags

Product Description

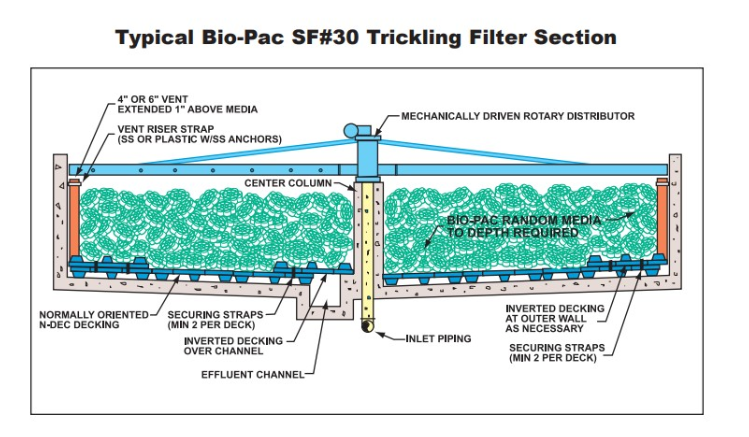

Bio-Pac SF#30 random dump media is successfully operating in over 100 trickling filters. With over 300 mixing and redistribution points for both air and water per cubic foot of media, Bio-Pac is capable of redistributing wastewater every 2” of media depth.This feature makes Bio-Pac ideal for shallow trickling filters.

Bio-Pac SF#30 has also been used extensively in upflow anaerobic and aerobic submerged bed reactors. Since the media floats, use of an underdrain support is eliminated.

Furthermore, Bio-Pac’s unique shape serves as a foam breaker when installed in anaerobic reactors.

Specification

SPECIFICATIONS FOR MBBR BIO MEDIA
Size	Material	Packing number (pcs/m3)	Bulk density kgs/m3	Suface area m2/m3	Free void %
D187*H50mm	PP	500	36	100	95

SPECIFICATIONS FOR MBBR BIO MEDIA
Size (mm)	Material	Packing number (pcs/m3)	Bulk density kgs/m3	Suface area m2/m3	Free void %
D95*H35	PP	1950	64.4	130	90

SPECIFICATIONS FOR MBBR BIO MEDIA
Size	Material	Packing number (pcs/m3)	Bulk density kgs/m3	Suface area m2/m3	Free void %
D187*H50mm	PP	500	36	100	95

SPECIFICATIONS FOR MBBR BIO MEDIA
Size (mm)	Material	Packing number (pcs/m3)	Bulk density kgs/m3	Suface area m2/m3	Free void %
D95*H35	PP	1950	64.4	130	90

Material Property

Property /Material	PE	PP	RPP	PVC	CPVC	PVDF
Density g/cm3	0.94-0.96	0.89-0.91	0.93-0.94	1.32-1.44	1.50-1.54	1.75-1.78
Application temperature	90	≤100	≤120	≤60	≤90	≤150
Chemical corrosion resistance	good	good	good	good	good	good

Working Principle

Application

Package Type	Container Load Capacity			Delivery time	Quality Insurance	Payment Terms
	20 GP	40 GP	40 HQ
Ton bag	20-24 m3	40 m3	48 m3	Within 3-10 days	Chinese National Standard Offer quality assurance as request.	T/T, L/C, Paypal, West Union
Plastic bag	25 m3	54 m3	68 m3
Paper box	20 m3	40 m3	40 m3
