PP PVC CPVC RPP Super Intalox Saddle Ring for Plastic Random Packing
PP PVC CPVC RPP Super Intalox Saddle Ring for Plastic Random Packing

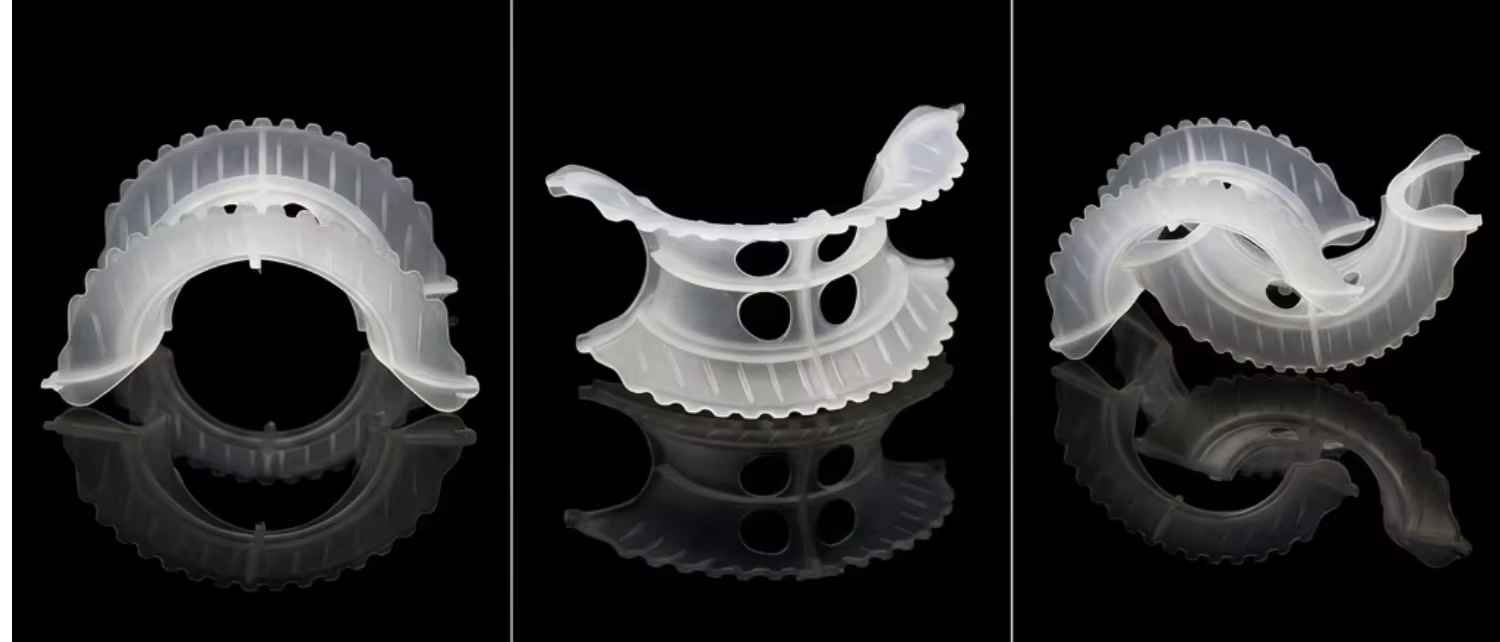

Plastic Super Intalox Saddle Ring is a type of plastic random tower packing, evolved from the traditional Intalox saddle. It combines the advantages of saddle-shaped and ring-shaped structures, widely used in mass transfer and heat transfer towers for gas-liquid contact processes.
| Size (mm) |
D*H*T(mm) | Surface area (m2/m3) |
Void ratio (%) |
Number per m3 |
Bulk density (kg/m3) |
Packing factor (m-1) |
| φ25 | 25*12.5*1.2 | 288 | 85 | 97680 | 102 | 467 |
| φ38 | 38*19*1.2 | 265 | 95 | 25200 | 91 | 309 |
| φ50 | 50*25*1.5 | 250 | 96 | 9400 | 75 | 282 |
| φ76 | 76*38*2.6 | 200 | 97 | 3700 | 59 | 220 |
- Improved saddle structure with serrated or scalloped edges to prevent nesting and channeling during random packing.
- High void ratio & low pressure drop, allowing higher gas and liquid throughput.
- Large effective surface area for better liquid distribution and mass transfer efficiency.
- Lightweight and corrosion-resistant, available in PP, RPP, PVC, CPVC, PVDF and other engineering plastics.
- Good anti-fouling performance, not easy to clog, suitable for dirty or dusty gas streams.
- Stable stacking behavior, uniform distribution in tower beds, reducing liquid maldistribution.
| Property /Material |
PE |
PP |
RPP |
PVC |
CPVC |
PVDF |
| Density g/cm3 |
0.94-0.96 |
0.89-0.91 |
0.93-0.94 |
1.32-1.44 |
1.50-1.54 |
1.75-1.78 |
| Application temperature |
90 |
≤100 |
≤120 |
≤60 |
≤90 |
≤150 |
| Chemical corrosion resistance |
good |
good |
good |
good |
good |
good |
|
Package Type |
Container Load Capacity |
Delivery time |
Quality Insurance |
Payment Terms |
||
|
20 GP |
40 GP |
40 HQ |
||||
|
Ton bag |
20-24 m3 |
40 m3 |
48 m3 |
Within 3-10 days |
Chinese National Standard Offer quality assurance as request. |
T/T, L/C, Paypal, West Union |
|
Plastic bag |
25 m3 |
54 m3 |
68 m3 |
|||
|
Paper box |
20 m3 |
40 m3 |
40 m3 |
|||
