Sic DPF Silicon Carbide Diesel Particulate Filter Honeycomb Ceramic Catalyst for Truck

Short Description:

Brand : Bestn

Size: OEM

Shape: Cylinder，Ellipse

Delivery method: EXW,FCA,FOB,CIF,C&F,DDP,DAP.

Payment terms: TT,Paypal,LC

Send email to us

Product Detail

Product Tags

Product Description

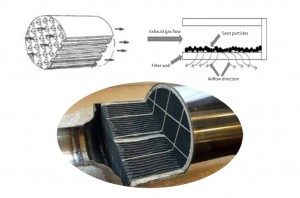

SiC DPF is a wall-flow honeycomb ceramic filter. Its channels are alternately plugged at opposite ends. Diesel exhaust flows into the inlet channels and is forced to penetrate the porous SiC wall. Soot and particulate matter (PM) are trapped on the porous substrate, while clean gas passes through to the outlet channels. Filtration efficiency can reach over 95%.

As soot accumulates, exhaust backpressure rises. Regeneration burns off trapped soot to restore filter capacity:

Passive Regeneration: NO₂ generated from upstream DOC oxidizes soot at relatively low temperature with catalytic coating.
Active Regeneration: Exhaust temperature is raised to 550–650°C. The soot reacts with oxygen and burns into CO₂.

Silicon carbide has much higher thermal conductivity than cordierite. It distributes heat evenly during regeneration, effectively avoiding thermal cracking and local overheating, which makes it ideal for heavy-duty diesel engines.

Physical and Chemical Properties

Item	Units	Technical Index
Sic content	%	>90
Cell density	CPSI	200
Wall thickness	mm	0.35-0.41
Cell length	mm	1.2-1.45
Apparent porosity	%	42-60
Median pore size	m	12-20
Transverse compression strength	Mpa	>2.3
Vertical compression strength	Mpa	10-18
Coefficient of thermal expansion (40-800ºC)	10-6 /ºC	4.3-4.4
Thermal Conductivity (500ºC)	W/mK	14-22
Capture rate	%	>95
Bulk density	Kg/L	0.8
Filter area	m²/L	0.75
Softening temperature	ºC	1400

Available Common Used Dimensions

Shape	Hole density (hole/inch2)	Size (mm)	Size (inch)
Round	300 CPSI	Φ101.6 x152.4	4×6
Round	300 CPSI	Φ118.4 x100	4.66×3.94
Round	300 CPSI	Φ118.4 x152.4	4.66×6
Round	300 CPSI	Φ150 x100	5.9×3.94
Round	300 CPSI	Φ170 x100	6.69×3.94
Round	300 CPSI	Φ190 x100	7.48×3.94
Round	300 CPSI	Φ210 x130	8.26×5.12
Round	300 CPSI	Φ240 x76.2	9.45×3
Round	300 CPSI	Φ240 x100	9.45×3.94
Oval	300 CPSI	Φ120.6 x 80 x 152.4	4.75×3.15×6
Oval	300 CPSI	Φ144.8 x 81.3 x 152.4	5.7×3.2×6
Oval	300 CPSI	Φ169.7 x 80.8 x 115	6.68×3.18×4.52
Round	400 CPSI	Φ150 x100	5.9×3.94
Round	400 CPSI	Φ144 x 152.4	5.66×6
Round	400 CPSI	Φ118.4 x 152.4	4.66×6
Round	400 CPSI	Φ115.4 x 152.4	4.54×6
Round	400 CPSI	Φ106 x 100	4.17×3.94
Round	400 CPSI	Φ103 x 100	4.05×3.94
Round	400 CPSI	Φ101.6 x 152.4	4×6
Round	400 CPSI	Φ100 x 100	3.94×3.94
Round	400 CPSI	Φ93 x 152.4	3.66×6
Round	400 CPSI	Φ83 x 152.4	3.26×6
Round	400 CPSI	Φ80 x 100	3.15×3.94
Round	400 CPSI	Φ76.2×50	3×1.97
Round	400 CPSI	Φ60×85	2.36×3.34
Oval	400 CPSI	Φ169 x 85.7 x 115	6.65 x 3.37 x 4.52
Oval	400 CPSI	Φ169 x 80.8 x 115	6.65 x 3.18 x 4.52
Oval	400 CPSI	Φ148 x 84 x 152.4	5.82 x 3.3 x 6
Oval	400 CPSI	Φ144.8 x 81.3 x 152.4	5.7 x 3.2 x 6
Oval	400 CPSI	Φ127 x 63.5 x 152.4	5 x 2.5 x 6
Oval	400 CPSI	Φ93 x 61 x 90	3.66 x2.4 x 3.54
Oval	400 CPSI	Φ120.6 x 80 x 152.4	4.75 x 3.15 x6
Oval	400 CPSI	Φ143 x 98 x 152.4	5.63 x 3.86 x 6
Oval	400 CPSI	Φ147 x 95 x 152.4	5.78 x 3.74 x 6
Oval	400 CPSI	Φ177.8 x 114.3 x 170	7 x 4.5 x 6.7
Irregular	400 CPSI	144 x 84 x 75	5.67 x 3.3x 2.95
Irregular	400 CPSI	114 x 105 x 115	4.49 x 4.13 x 4.52
Irregular	400 CPSI	112.2 x 92 x 115	4.42 x 3.62 x 4.52
Irregular	400 CPSI	119.5 x 99.5 x 115	4.7 x3.92 x 4.52
Irregular	400 CPSI	120.2 x 108.2 x 75	4.73 x 4.26 x 2.95
Irregular	400 CPSI	122.3 x 104.4 x 80	4.81 x 4.11 x 3.15

Feature & Advantages

1. Low pressure drop.
2. Low coefficient of thermal expansion.
3. Good thermal shock resistance.
4. High temperature resistance, good resistance to chemical corrosion.
5. High porosity, pore size distribution uniform, high filter specific surface area.
6. Long-term durability performance.
7. High particulate trapping efficiency, suitable for all kinds of regeneration.
Diesel particulate filter is suitable for exhaust gas purification of various kinds of diesel vehicles and ships. We can produce
different materials of DPF: cordierite diesel particulate filter and silicon carbide diesel particulate filter.
If you want know more things about the DPF, please contact us directly, I will do my best to service for you
