Pt Pd VOC Ceramic Catalyst for Industrial Exhaust Treatment
Pt Pd VOC Ceramic Catalyst for Industrial Exhaust Treatment
Product description

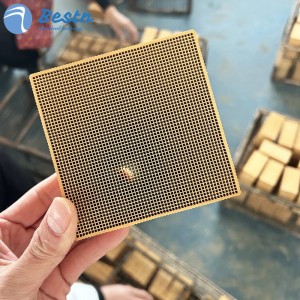

VOC Catalyst for catalytic combustion uses cordierite honeycomb ceramic body as the first carrier，y-Al2O3。 as the second carrier, and noble metal Pd. PL. etc, as the main active component. which is prepared by the method of inefficient distribution of high dispersion rate, a new and fficient organic waste gas purification catalyst.
Specification
|
Shape
|
square honeycomb
|
|
Specitications
|
150*150*50.100* 100*50. 50*50*50 can be customized as required
|
|
Cell type
|
square
|
|
Cell density
|
32pcs/cm2
|
|
Carrier specific surface area
|
≥120m2/g
|
| Wall thickness |
0.2-5mm
|
| Outer diameter |
50-150
|
| Height range |
25-400
|
| Tolerance range | 1.0mm |
Physicochmical properties
| Category | Measurement | Parameter | |
|
Cordierite |
% | ≥95 | |
| Thermal expansion Coefficient (RT-800℃) | m/℃ | ≤1.3×10-6 | |
| Thermal shock resistance(RT-550℃) | Cycle times | ≥3 | |
| Softening temperature | ℃ | ≥1360 | |
| Compressive strength | Parallel direction | MPa | ≥10 |
| Vertical direction | MPa | ≥3 | |
| Mesh | Mesh | 100-600 | |
| Water absorption rate | % | 20-28 | |
| Wall thickness | mm | 0.13-0.23 | |
| Tolerance range | mm | ≤0.8 | |
Application
Package
-
