Product description
Ceramic foam filter is just developed as a new type of molten metal filters to decrease casting flaw in recent years. It is made from high quality ceramic materials, whose main components are Al2O3, Sic, ZrO2. Ceramic Foam Filter has the characters of light weight, high mechanical strength, large specific surface areas, high porosity, excellent thermal shock resistance, chemical corrosion resistance and high temperature stability in molten metal. With the distributing pores net structure, they are able to increase the surface areas, and absorb the sinter, the liquid metal becomes more pure, waster quality problems such as sand pore and air pore are much less and the cast quality becomes much better.
Main material
1.Alumina
2.Slica carbide
3.Zirconia
Product details

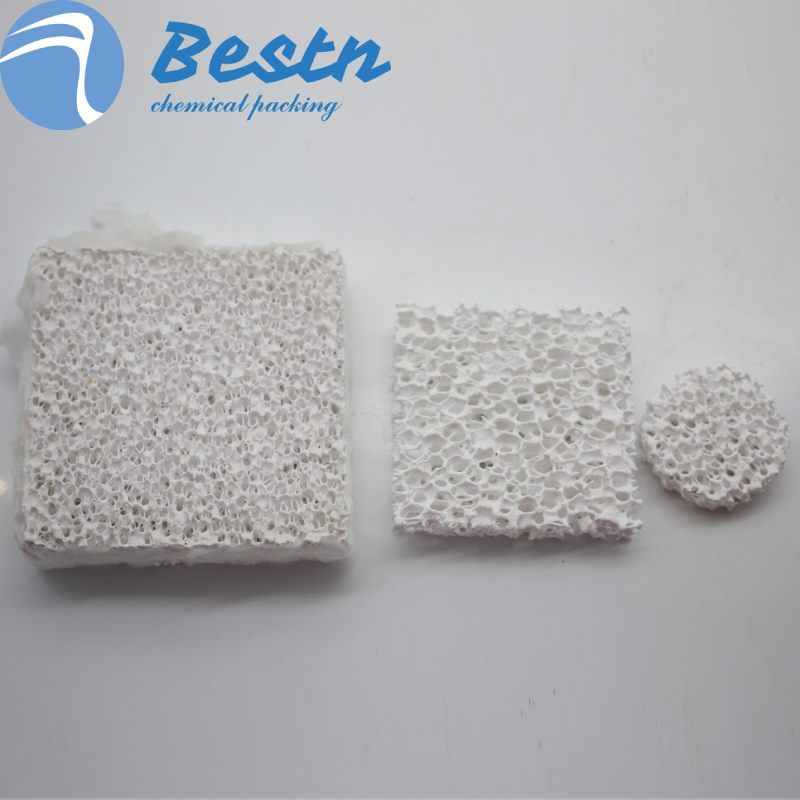

Alumina ceramic foam filter is a new type of low density, high porosity and with three dimensional network skeleton structure of the filter. And widely used in aluminum process industry for molten aluminum filtering, so as to improve aluminum quality. Alumina ceramic foam filter can effectively removes non-metal solid mixture from aluminium and aluminium alloy fusant, reduce trapped gas and provide laminar flow and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings,less scrap, and fewer inclusion defects, to improve the quality of aluminum alloy and other non-ferrous alloy casting, all of which contribute to reduce casting cost, its maximum service temperature 1200° C.
|
Porosity(%)
|
80-90%
|
|
Working Temperature
|
≤1100ºC
|
|
Bending Strength (Mpa)
|
0.6
|
|
Compression Strength (Mpa)
|
0.8
|
|
Thermal Shock Resistance
|
1100ºC-room temperature 6 times
|
|
Bulk Density
|
0.35-0.45 g/cm3
|

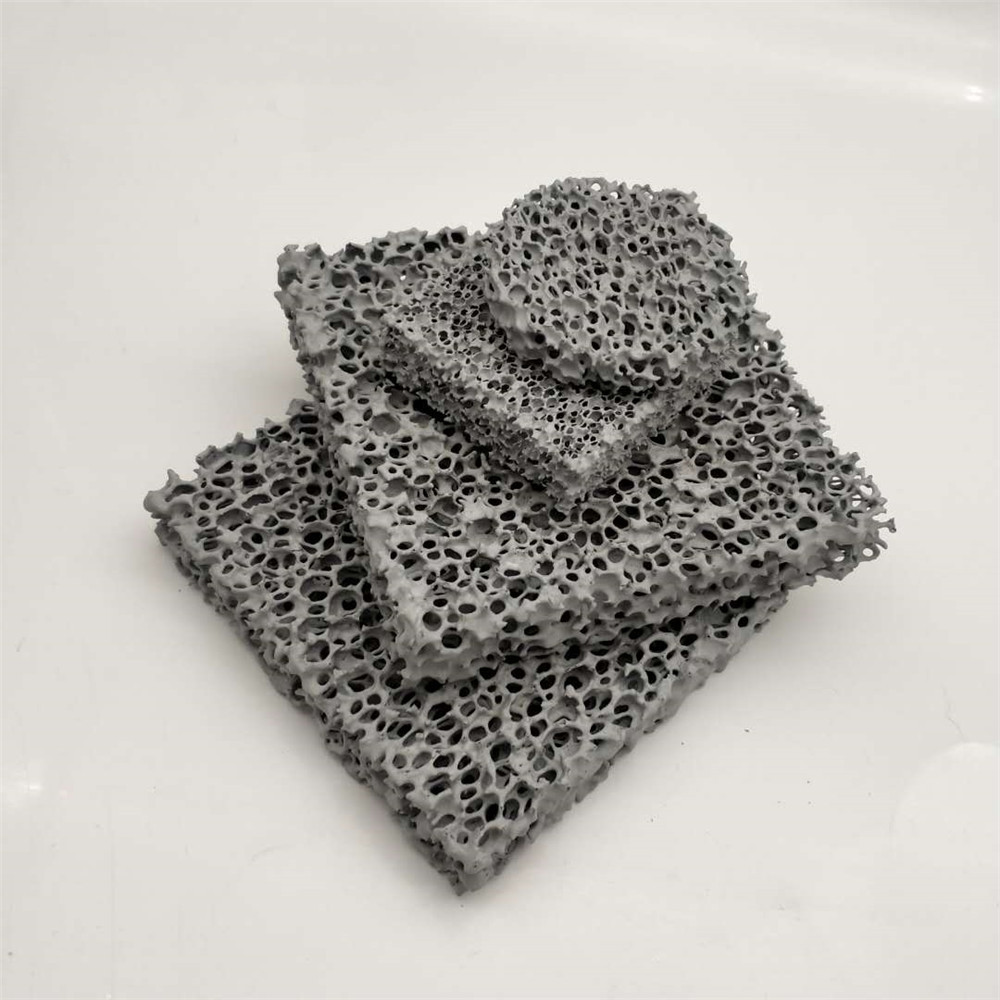

The silicon carbide foam ceramic filter, with the three- dimensional mesh interconnection structure of foam sponge, can make metal liquid reflect rectification, mechanical screening, filtration cake, adsorption and other filtration mechanisms to effectively improve the purity of metal liquid, reduce waste rate, reduce mechanical processing loss, thus improve production efficiency and reduce production cost.
|
Composition of product
|
Silicon Carbide,AL2O3,SiO ect
|
|
Color
|
Grey,Dark Grey
|
|
Using Temperature
|
≤1550ºC
|
|
Number of hole density PP(holes per square inch)
|
10,15,20,30
|
|
Porosity
|
85%-90%
|
|
CMOR Mpa
|
≥1.5Mpa(Industry Standard 1.0Mpa)
|
|
Bulk Density
|
0.4g/cm3~0.5g/cm3
|
|
Square shape
|
Ductile cast iron
|
Ash cast iron/copper-aluminum castings
|
Ductile cast iron
|
Ash cast iron/copper-aluminum castings
|
Ductile cast iron
|
|
40*40*22
|
32
|
64
|
3
|
4
|
25
|
|
50*50*22
|
50
|
100
|
4
|
6
|
35
|
|
60*60*22
|
72
|
144
|
5
|
8
|
50
|
|
75*50*22
|
75
|
150
|
6
|
9
|
75
|
|
100*50*22
|
100
|
200
|
8
|
12
|
100
|
|
75*75*22
|
110
|
220
|
9
|
14
|
120
|
|
80*80*22
|
150
|
300
|
12
|
18
|
140
|
|
100*100*22
|
200
|
400
|
16
|
24
|
190
|
|
150*100*22
|
300
|
600
|
24
|
36
|
230
|
|
150*150*22
|
450
|
900
|
36
|
54
|
350
|
|
Round shape
|
Ductile cast iron
|
Ash cast iron/copper-aluminum castings
|
Ductile cast iron
|
Ash cast iron/
copper-aluminum castings |
|
Φ40*22
|
25
|
50
|
2
|
3.5
|
|
Φ50*22
|
35
|
70
|
3
|
4.5
|
|
Φ60*22
|
50
|
100
|
4.2
|
6.5
|
|
Φ70*22
|
75
|
150
|
5.5
|
8.8
|
|
Φ80*22
|
100
|
200
|
7.2
|
11
|
|
Φ90*22
|
120
|
240
|
9
|
14
|
|
Φ100*22
|
140
|
280
|
11
|
17
|
|
Φ110*22
|
190
|
380
|
13
|
20
|
|
Φ120*22
|
230
|
460
|
16
|
25
|
|
Φ150*22
|
350
|
700
|
25
|
30
|
Zirconia ceramic filter plate is a kind of ceramic filter plate, which is made of zirconia based ceramic slurry and organic foam which is coated with three-dimensional mesh structure and connected pores on the skeleton, and then dried and cured and then roasted at high temperature. Three-dimensional mesh structure has a good rectification effect on turbulent metal flow, and has a good control effect on non-metallic inclusions and secondary oxidation caused by turbulent erosion cavity.
|
L * W * T / Diameter *thick (mm)
|
Filter capacity (kg)
|
The pouring flow (kg/s) direct channel is 300mm high
|
||
|
High degree of deoxygenation
|
Low degree of deoxygenation
|
Carbon-based steel castings
|
Stainless steel casting pieces
|
|
|
50Dx20
|
30
|
90
|
2.0
|
3.0
|
|
70Dx25
|
60
|
175
|
3.8
|
5.7
|
|
90Dx25
|
95
|
285
|
6.4
|
9.5
|
|
125Dx30
|
185
|
550
|
12.2
|
18.4
|
|
150Dx30
|
265
|
795
|
17.7
|
26.5
|
|
50x50x20
|
35
|
110
|
2.5
|
3.7
|
|
50x75x25
|
55
|
170
|
3.7
|
5.6
|
|
75x75x25
|
85
|
255
|
5.6
|
8.4
|
|
100x100x25
|
150
|
450
|
10.0
|
15.0
|
|
125x125x30
|
235
|
700
|
15.6
|
23.4
|
|
150x150x30
|
340
|
1010
|
22.5
|
33.7
|
Product Application
Widely used in filtering various steel casting and large cast iron, high temperature master alloy and aviation castings, magnetic materials, and non-ferrous metal low pressure casting fields
Product Advantages
1.Structure: three-dimensional network structure, smooth rectification and filling The upper, middle and lower three-dimensional network has no blocked holes, no blind holes, reducing eddy current, flocculation laminar flow, and stable filling
2.Filtration: Labyrinth channel, efficient mechanical slag blocking There are microscopic gaps, strong adsorption of slag, effective filtration, oxide inclusions, slag and other large impurities
3.Performance: Large internal specific surface area of the filter The grout is sufficient and without blind holes, forming a complete multidimensional, three-dimensional channel of pore reinforcement, absorbing micro-inclusions
