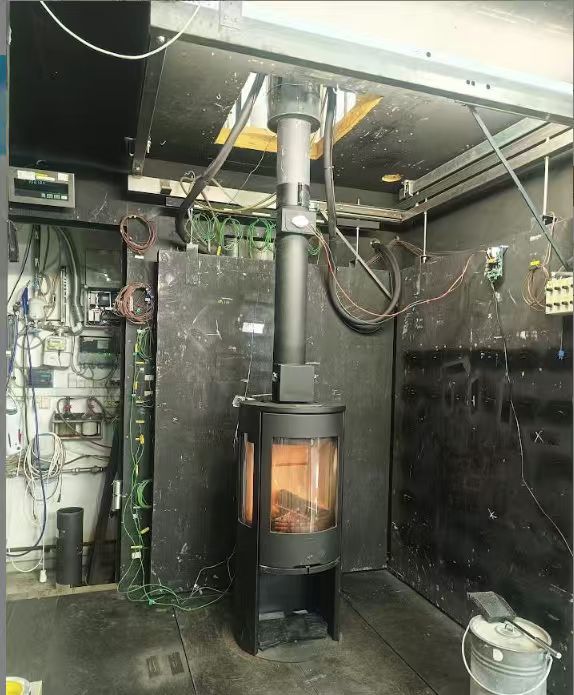

Wood stove converter generally use mullite honeycomb ceramics and stainless steel material as the shell. Due to its good heat resistance and high temperature resistance, it can be used for wooden stove and fireplaces. The honeycomb shaped pore size can filter some impurities and can be used for smoke exhaust port filtration.
We has two types,without coated and coated with precious metal.Without coated wood stove converter can used in the common fireplace,it can help to thermal storage and filter some smoke and dust. If it is necessary to reduce CO emissions,coatings can be customized according to the application environment, it can lock the heat and reduce con-sumption.
|
Item
|
Data
|
|
Structure
|
Honeycomb Ceramic
|
|
Carrier material
|
Ceramic or metal honeycomb substrate
|
|
Honeycomb density
|
40 60 CPSI
|
|
Active components
|
Pt, Pd, Rh
|
|
Size
|
165*63.5*50mm 323*63.5*50mm 323*63.5*25mm 330*63.5*50mm
152*50mm 148*50mm 145*50mm
|
|
Light-off temperature
|
200-250°C
|
|
Optimal use temperature
|
250-400°C
|
|
Co outlet concentration
|
≤4mg/m3
|
|
Non methane CnHm outlet concentration
|
≤5mg/m3
|
|
Remarks
|
Can be customized.
|
|
Shape
|
Round Rectangle
|
