Honeycomb Ceramic Filter Wood-Buring Stove Catalyst Converter for CO CnHm Treatment

Short Description:

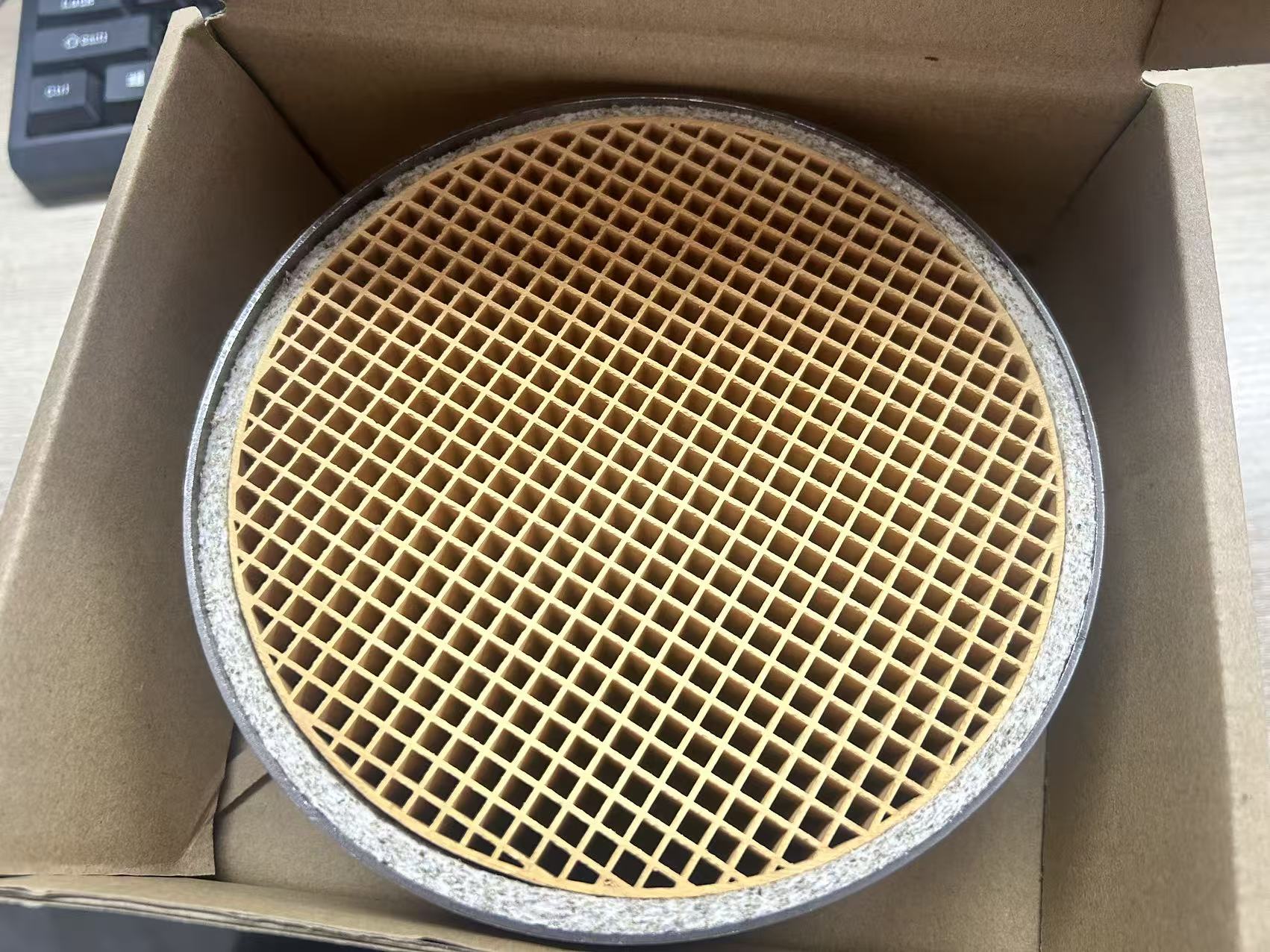

Wooden stove converter generally use mullite honeycomb ceramics and stainless steel material as the shell. Due to its good heat resistance and high temperature resistance, it can be used for wooden stove and fireplaces. The honeycomb shaped pore size can filter some impurities and can be used for smoke exhaust port filtration. If it is necessary to reduce CO emissions, coatings can be customized according to the application environment – palladium (Pd), platinum (Pt), rhodium (Rh) ratio, it can lock the heat and reduce consumption.

Send email to us

Product Detail

Product Tags

Item	Data
Structure	Honeycomb Ceramic+Stainless steel Shell
Carrier material	Mullite honeycomb substrate
Honeycomb density	100, 200, 300, 400 or 600 CPSI
Active components	Pt, Pd, Rh and so on.
Size	15250mm 14850mm 14550mm 16563.550mm 32363.550/25mm 33063.5*50mm
Light-off temperature	200-250°C
Optimal use temperature	250-400°C
Co outlet concentration	≤4mg/m3(Just to refer to,it depends on the application)
Non methane CnHm outlet concentration	≤5mg/m3
Remarks	Can be customized.
Shape	Round,Rectangle
Please note:the coating as the client's demand.The coated honeycomb ceramic use cordierite and the uncoated honeycomb ceramic use mullite.

Feature & Advantages

1. Low combustion temperature, flameless combustion and heat locking.
2. Fast combustion, complete combustion, and reduced fuel use.
3. The combustion products are harmless CO2 and H2O and do not produce secondary pollutants.
4. Wide scope of application.
