Dia150mm PE+Synthetic Fiber Combined Packing Filler for Water Treatment

Short Description:

Application: Water treatment

Dimension: Dia150mm

Material: PE+Synthetic Fiber

Delivery method: EXW,FCA,FOB,CFR,CIF,DAP,DDP

Payment method: TT,LC,etc

Send email to us

Product Detail

Product Tags

Product Description

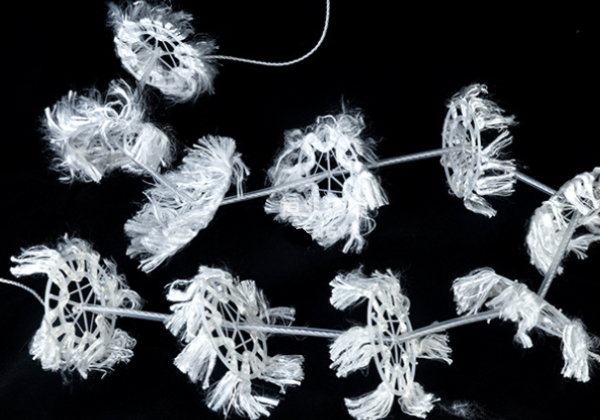

Combination packing is another kind of packing improved on the basis of soft packing, which is composed of fiber bundle, plastic ring sheet, sleeve and rope. The fiber bundle is supported by the middle plastic ring sheet, which avoids the phenomenon of fiber bundle agglomeration, and at the same time can play a good role in water distribution and air distribution, with good contact mass transfer conditions and high oxygen utilization rate.

Advantages & Features

1. High heat dissipation and low resistance.
2. Good performance of water distribution and air distribution, easy to grow film, and has the function of cutting air bubbles.
3. The water and gas biofilm can be fully exchanged, so that the organic matter in the water can be efficiently treated.
4. No blockage, no unity, large specific surface area, and fast film hanging.

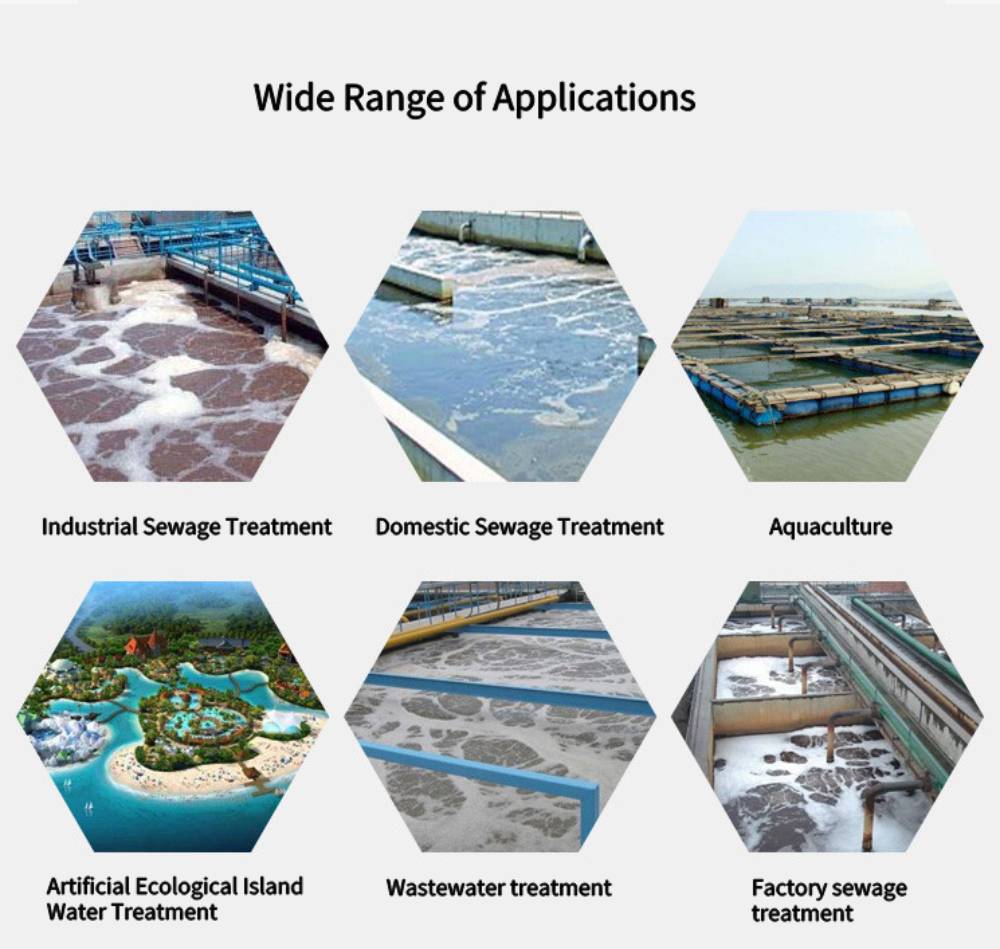

5. Long service life, high load impact resistance, good inflatable performance, suitable for various.It is matched with contact oxygen tank and oxidation tank in various sewage and wastewater treatment projects.

Specification

Model	Diameter of plastic ring	Single piece filler diameter	Chip spacing distance	Spacing in the pool
ZV-150-60	75	150	60	150
ZV-150-80	75	150	60	150
ZV-150-100	75	150	100	150
ZV-200-100	75	200	100	200

Project	Unit	Parameter
Unit weight	kg/m3 per pool	3.5-7
Packing density	piece/m3 per pool	556
Basic weight after film hanging	kg/m3 per pool	450
Theoretical specific surface area	m2/m3 per pool	2000
Normal load	per pool	2.5-3
Shock load	kg COD/m3 per pool	>5
