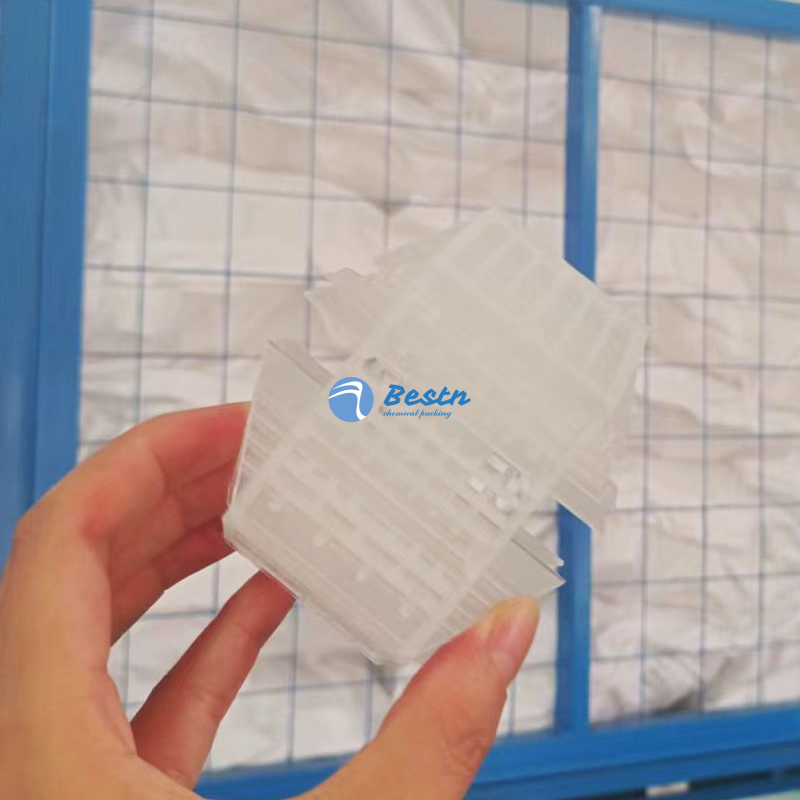

3.5″ 2.6″ PP CPVC PVC Hexagonal Ring Plastic LanPack
3.5″ 2.6″ PP CPVC PVC Hexagonal Ring Plastic LanPack
1) Geometric shape design greatly increases the gas/liquid contact area
2) Low investment and energy consumption： High flow rate design of the empty tower, high porosity, reduced pressure, low fan energy consumption The designed circulating water volume is low, and the energy consumption of the water pump is small
3) More stable and durable, the filler will not overlap each other after operation, will not reduce efficiency or produce short flow
1. Good Capacity and Low Pressure Drop
• Higher capacity and lower pressure drop than ceramic packing.
• Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.
2. Higher Liquid Hold-up and Residence Time
• Relatively high liquid hold-up allows good absorption efficiency with slow chemical reaction.
3. Versatile Standard Packing
• Lower sensitivity to liquid and vapor distribution quality allows use with conventional liquid distributors.
4. High Mechanical Strength
• Ring and spoke construction provides high mechanical strength, which allows use in deep beds.
Applicable to a wide range of applications, including scrubbing towers, stripping towers and stripping towers.
1.Ground water remediation by air stripping
2.Aeration of water for H2S removal
3.CO2 removal for corrosion control
4.Scrubbers with high liquid flux (less than 10 gpm/ft2)
|
Product Name
|
Plastic Lanpack
|
|||||
|
Material
|
PP, PE、PVDF.
|
|||||
|
Size
Inch/mm |
Surface Area
m2/m3 |
Void Volume
% |
Packing Number
pieces/ m3 |
Weight(PP)
|
Dry Packing Factor m-1
|
|
|
3.5”
|
90
|
144
|
92.5
|
1765
|
4.2lb/ft3 67kg/m3
|
46/m
|
|
2.3”
|
60
|
222
|
89
|
7060
|
6.2lb/ft3 99kg/m3
|
69/m
|
|
Package |
Plastic bag |
Super sack |
Carton |
|
1X20GP |
25m3 |
20-24m3 |
20m3 |
|
1X40GP |
54m3 |
40m3 |
40m3 |
